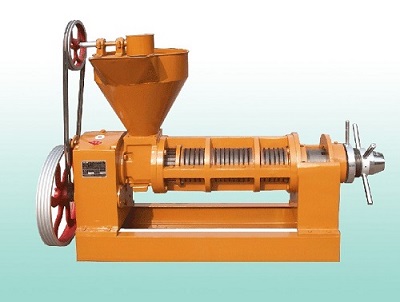

6YL-160型螺旋榨油機
6YL-160型螺旋榨油機主要性能參數
一．主要性能參數:
Main Specifications
1.榨軸轉速:35-39轉/分
Shaft speed: 35-39r/m
2.齒輪箱傳動比:15/38/15/52=1:8.78
Gear ratio in gearbox: 15/38/15/52=1:8.78
3.配用動力: 18.5-22KW
Motor: 18.5-22KW
4.三角帶: B型
Belt: B型
5.外形尺寸:長x寬x高 2020x700x1480(mm)
Outer dimension: L×W×H(mm) 2020x700x1480
6.單機重量: 960kg
Weight: 960kg
7產量: 14-17噸
Output:14-17T/D
6YL-160型螺旋榨油榨籠(包括條排,圓排,骨圈)的拆裝方法
Assembly/disassembly of Pressing cage (round plates, square rods holder)
|
序號NO |
品名name |
厚度mm thickness |
備注note |
序號NO |
品名name |
厚度mm thickness |
備注note |
|
1 |
1＃圓排pressing ring No.1 |
30 |
兩面米子牙倒角miziya angle of chamber |
15 |
15＃圓排pressing ring No.15 |
70 |
|
|
2 |
2＃圓排pressing ring No.2 |
30 |
|
16 |
16＃圓排pressing ring No.15 |
30 |
平面倒角 Plane angle of chamber |
|
3 |
3＃圓排pressing ring No.3 |
30 |
|
17 |
17＃圓排pressing ring No.15 |
25 |
|
|
4 |
4＃圓排pressing ring No.4 |
30 |
|
18 |
18＃圓排pressing ring No.15 |
30 |
|
|
5 |
5＃圓排pressing ring No.5 |
30 |
米子牙倒角 Miziya angle of chamber |
19 |
19＃圓排pressing ring No.15 |
30 |
|
|
6 |
6＃圓排pressing ring No.6 |
70 |
|
20 |
20＃圓排pressing ring No.15 |
30 |
米子牙倒角 Miziya angle of chamber |
|
7 |
7＃圓排pressing ring No.7 |
30 |
平面倒角 plane angle of chamber
|
21 |
出餅圈cake output ring |
|
|
|
8 |
8＃圓排pressing ring No.8 |
25 |
|
22 |
壓緊絲pressing bolt |
|
|
|
9 |
9＃圓排pressing ring No.9 |
30 |
|
23 |
條排pressing bar |
|
|
|
10 |
10＃圓排pressing ring No.10 |
25 |
|
24 |
條排圈rail group ring |
|
|
|
11 |
11＃圓排pressing ring No.11 |
30 |
|
25 |
上榨籠top cage |
|
|
|
12 |
12＃圓排pressing ring No.12 |
30 |
|
26 |
榨籠短鍵pressing cage minor key |
|
|
|
13 |
13＃圓排pressing ring No.13 |
30 |
|
27 |
下榨籠bottom cage |
|
|
|
14 |
14＃圓排pressing ring No.14 |
30 |
米子牙倒角 Miziya angle of chamber |
28 |
榨籠長鍵pressing cage major key |
|
|
2.榨螺的拆裝方法：
（1）榨螺的拆法：停機后立即搬動手柄，把榨軸從榨膛內抽出，卸下保護帽、六方螺母、園螺母及調節螺栓，用直徑16的鐵棒插入鎖緊螺母的孔內順時針方向旋轉（切記與軸芯配合的螺紋均為左旋），拆去緊鎖螺母后，各節榨螺即可卸下。如榨螺（內孔進有細渣）因阻塞不好拆卸，可將地上墊一木板，二人將榨螺輕撞幾 下即可卸下，若仍卸不下來，可用木柴火加熱后再卸下。
（2）榨螺的安裝：將榨螺立起細端向上，裝上檔圈，在把榨螺由1號起依次裝于軸上，然后用鎖緊螺母壓緊，以防油渣深入榨螺孔內，影響榨螺的拆卸。（調節螺母使調節栓兩端是8309軸承，裝時兩軸承大孔面均靠在調節螺栓的兩端面。榨螺整體裝齊后用兩個（M42×2）的螺帽背緊，背緊時注意兩個8309軸承的縫隙 。用手搬轉調節螺栓，感到轉動靈活時即可。
5．2 Pressing screw：
5．2．1 Disassembly of the screw ：rotate the handle as soon as machine stops and pull out the screw from the chamber ，remove nuts and adjusting bolt. Insert a 16mm diameter bar into lock nut and turn and turn it clockwise.(important note: left hand screw).After taking off lock nut, each part of pressing screw can be removed. However, holes in the screw might be blocked by fine slag particles, which retard the disassembly. Tapping or heating pressing screw might help disassembling.
5.2.2 Mounting pressing screw :put small end of its shaft upwards, mount the first screw and then the second...sequence, tighten then by the lock nut to avoid particles in . On both ends of adjusting bolt, which is easily swung on the shaft by adjusting nut, two bearing 8309 are mounted. Be careful to make big hole sides of these two bearings touch adjusting bolts double ends. Finally , whole pressing screw will be tightened by two M42×2 nuts, But certainly, gaps of two bearings need to be carefully set. In fact, if hands can swing adjusting bolts smoothly, the adjustment is acceptable.
