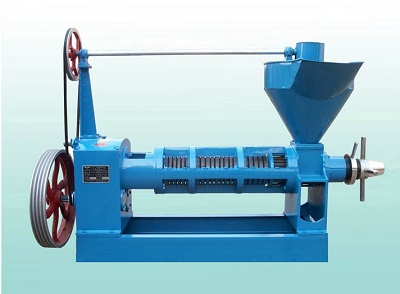

6YL-150型螺旋榨油機
6YL-150型螺旋榨油機主要性能參數
一．主要性能參數:
Main Specifications
1,榨軸轉速:35-39轉/分
Shaft speed:35-39r/m
2,齒輪箱傳動比:15/3815/52=1:8.78
Gear ratio in gearbox: 15/38/15/52=1:8.78
3配用動力:18.5KW
Motor:18.5KW
4三角帶:B型
Belt: B型
5外形尺寸:長x寬x高1980x680x1460(mm)
Outer dimension: L×W×H(mm) 1980x680x1460
6單機重量:760kg
Weight:760kg
7產量: 10-13噸
Output:10-13T/D
6YL-150型螺旋榨油榨籠(包括條排,圓排,骨圈)的拆裝方法
Assembly/disassembly of Pressing cage (round plates, square rods holder)
|
序號NO |
品名name |
厚度 thickness |
備注note |
序號NO |
品名name |
厚度 thickness |
備注note |
|
1 |
1＃圓排pressing ring No.1 |
30 |
平面倒角 Plane angle of chamber |
15 |
15＃圓排pressing ring No.15 |
30 |
平面倒角 Plane angle of chamber |
|
2 |
2＃圓排pressing ring No.2 |
30 |
|
16 |
16＃圓排pressing ring No.15 |
25 |
|
|
3 |
3＃圓排pressing ring No.3 |
30 |
|
17 |
17＃圓排pressing ring No.15 |
25 |
|
|
4 |
4＃圓排pressing ring No.4 |
30 |
米子牙倒角 Miziya angle of chamber |
18 |
18＃圓排pressing ring No.15 |
25 |
|
|
5 |
5＃圓排pressing ring No.5 |
60 |
|
19 |
19＃圓排pressing ring No.15 |
25 |
|
|
6 |
6＃圓排pressing ring No.6 |
30 |
平面倒角 Plane angle of chamber |
20 |
20＃圓排pressing ring No.15 |
30 |
米子牙倒角 Miziya angle of chamber |
|
7 |
7＃圓排pressing ring No.7 |
25 |
|
21 |
出餅圈cake output ring |
|
|
|
8 |
8＃圓排pressing ring No.8 |
30 |
|
22 |
壓緊絲pressing bolt |
|
|
|
9 |
9＃圓排pressing ring No.9 |
25 |
|
23 |
條排pressing bar |
|
|
|
10 |
10＃圓排pressing ring No.10 |
30 |
|
24 |
條排圈rail group ring |
|
|
|
11 |
11＃圓排pressing ring No.11 |
25 |
|
25 |
上榨籠top cage |
|
|
|
12 |
12＃圓排pressing ring No.12 |
30 |
|
26 |
榨籠短鍵pressing cage minor key |
|
|
|
13 |
13＃圓排pressing ring No.13 |
30 |
米子牙倒角 Miziya angle of chamber |
27 |
下榨籠bottom cage |
|
|
|
14 |
14＃圓排pressing ring No.14 |
60 |
|
28 |
榨籠長鍵pressing cage major key |
|
|
