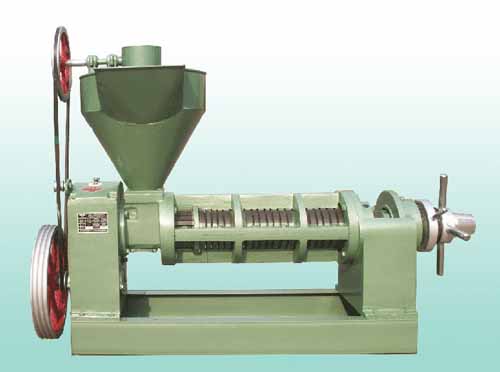

6YL-125型螺旋榨油機
6YL-125型螺旋榨油機主要性能參數
一．主要性能參數:
Main Specifications
1榨軸轉速:35-39轉/分
Shaft speed:35-39r/m
2齒輪箱傳動比:15/40/15/55=1:9.77
Gear ratio in gearbox: 15/40/15/55=1:9.77
3配用動力:15KW
Motor:15KW
4三角帶:B型
Belt: B型
5外形尺寸:長x寬x高1820x570x1320(mm)
Outer dimension: L×W×H(mm) 1820x570x1320
6單機重量:580kg
Weight:580kg
7 產量: 5-8噸
Output:5-8T/D
6YL-125型螺旋榨油榨籠(包括條排,圓排,骨圈)的拆裝方法
Assembly/disassembly of Pressing cage (round plates, square rods holder)
|
序號 |
品名name |
厚 (mm) thickness |
備注note |
序號NO |
品名name |
厚 thickness |
備注note |
|
1 |
1＃圓排pressing ring No.1 |
30 |
兩面米子牙倒角two planes angle of chamber |
15 |
15圓排pressing Ring NO.15 |
30 |
平面倒角 Plane angle of chamber |
|
2 |
2＃圓排pressing ring No.2 |
25 |
|
16 |
16圓排pressing Ring NO.16 |
25 |
|
|
3 |
3＃圓排pressing ring No.3 |
25 |
|
17 |
17圓排pressing Ring NO.17 |
30 |
|
|
4 |
4＃圓排pressing ring No.4 |
25 |
|
18 |
18圓排pressing Ring NO.18 |
30 |
|
|
5 |
5＃圓排pressing ring No.5 |
30 |
米子牙倒角 Miziya angle of chamber |
19 |
19圓排pressing Ring NO.19 |
30 |
米子牙倒角Miziya angle of chamber |
|
6 |
6＃圓排pressing ring No.6 |
60 |
|
20 |
出餅圈cake output ring |
|
|
|
7 |
7＃圓排pressing ring No.7 |
30 |
平面倒角 Plane angle of chamber |
21 |
壓緊絲pressing bolt |
|
|
|
8 |
8＃圓排pressing ring No.8 |
25 |
|
22 |
條排pressing bar |
|
|
|
9 |
9＃圓排pressing ring No.9 |
30 |
|
23 |
條排圈rail group ring |
|
|
|
10 |
10 ＃圓pressing ring No.10 |
25 |
|
24 |
上榨籠top cage |
|
|
|
11 |
11＃圓排pressing ring No.11 |
30 |
|
25 |
榨籠短鍵pressing cage minor key |
|
|
|
12 |
12＃圓排pressing ring No.12 |
30 |
|
26 |
下榨籠bottom cage |
|
|
|
13 |
13＃圓排pressing ring No.13 |
30 |
米子牙倒角 Miziya angle of chamber |
27 |
榨籠長鍵pressing cage major key |
|
|
|
14 |
14＃圓排pressing ring No.14 |
60 |
|
|
|
|
|
