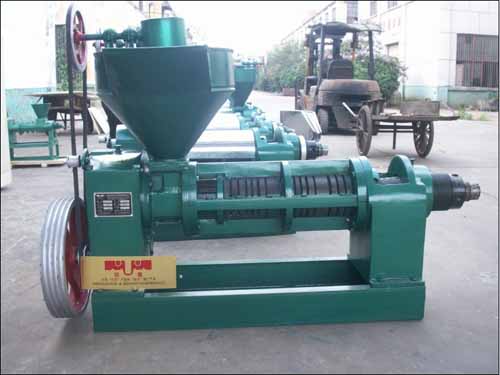

6YL-120C型螺旋榨油機
6YL-120/105型螺旋榨油機主要性能參數
一．主要性能參數:
Main Specifications
1榨軸轉速:45-55轉/分
Shaft speed:45-55r/m
2齒輪箱傳動比:15/34/13/55=1:9.58
Gear ratio in gearbox: 15/34/13/55=9.58
3配用動力:11-15KW
Motor:11-15KW
4三角帶:B型
Belt: B型
5外形尺寸:長x寬x高1820x570x1320(mm)
Outer dimension: L×W×H(mm) 1820x570x1320
6單機重量:580kg
Weight:580kg
7產量 4-7噸/24小時
Output: 4-7T/D
6YL-120/105型螺旋榨油榨籠(包括條排,圓排,骨圈)的拆裝方法
Assembly/disassembly of Pressing cage (round plates, square rods holder)
|
序號NO |
品名name |
序號NO |
品名name |
序號NO |
品名name |
|
1 |
1＃圓排pressing ring No.1 |
12 |
12＃圓排pressing ring No.12 |
23 |
23＃圓排pressing ring No.23 |
|
2 |
2＃圓排pressing ring No.2 |
13 |
13＃圓排pressing ring No.13 |
24 |
24＃圓排pressing ring No.24 |
|
3 |
3＃圓排pressing ring No.3 |
14 |
14＃圓排pressing ring No.14 |
25 |
25＃圓排pressing ring No.25 |
|
4 |
4＃圓排pressing ring No.4 |
15 |
15＃圓排pressing ring No.1 |
26 |
條排pressing bar |
|
5 |
5＃圓排pressing ring No.5 |
16 |
16＃圓排pressing ring No.2 |
27 |
條排圈rail group ring |
|
6 |
6＃圓排pressing ring No.6 |
17 |
17＃圓排pressing ring No.3 |
28 |
榨籠短鍵pressing cage minor key |
|
7 |
7＃圓排pressing ring No.7 |
18 |
18＃圓排pressing ring No.18 |
29 |
上榨籠top cage |
|
8 |
8＃圓排pressing ring No.8 |
19 |
19＃圓排pressing ring No.19 |
30 |
壓緊絲pressing bolt |
|
9 |
9＃圓排pressing ring No.9 |
20 |
20＃圓排pressing ring No.20 |
31 |
出餅圈cake output ring |
|
10 |
10＃圓排pressing ring No.10 |
21 |
21＃圓排pressing ring No.21 |
32 |
榨籠長鍵pressing cage major key |
|
11 |
11＃圓排pressing ring No.11 |
22 |
22＃圓排pressing ring No.22 |
33 |
下榨籠bottom cage |
注意：記住各圓排的位置,便于裝配。
